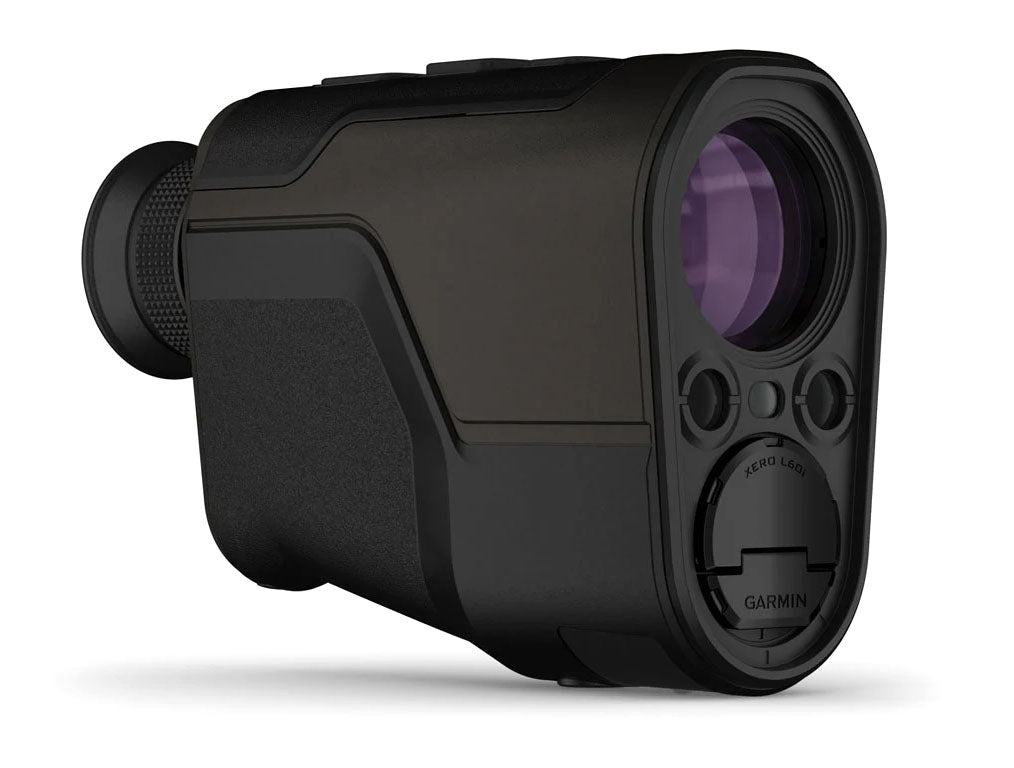

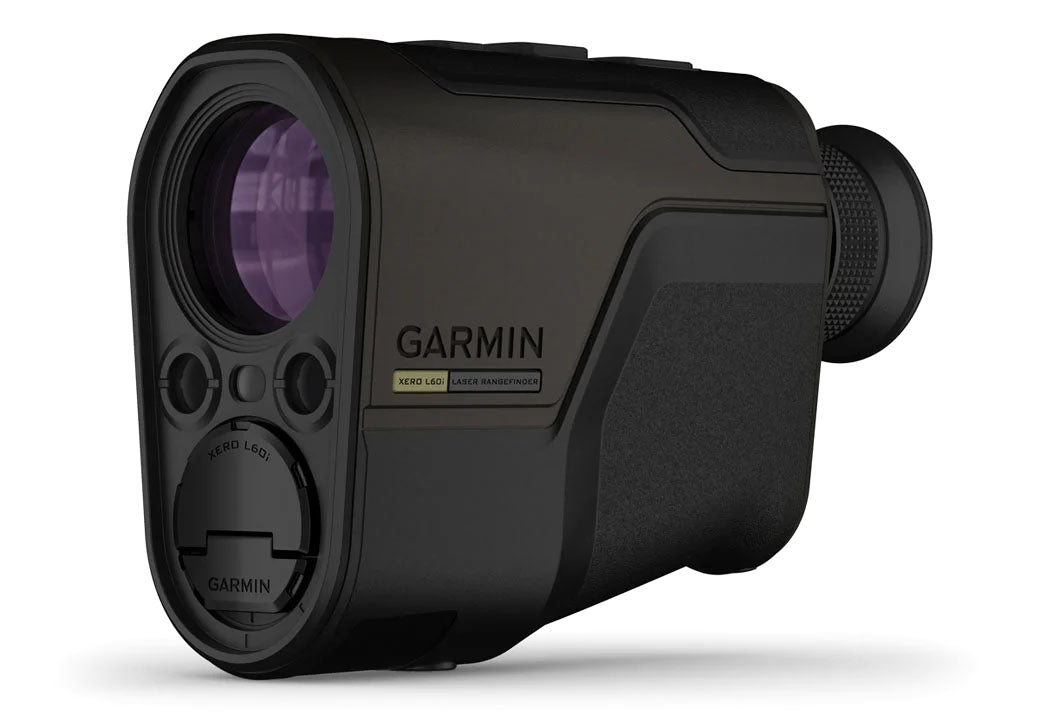

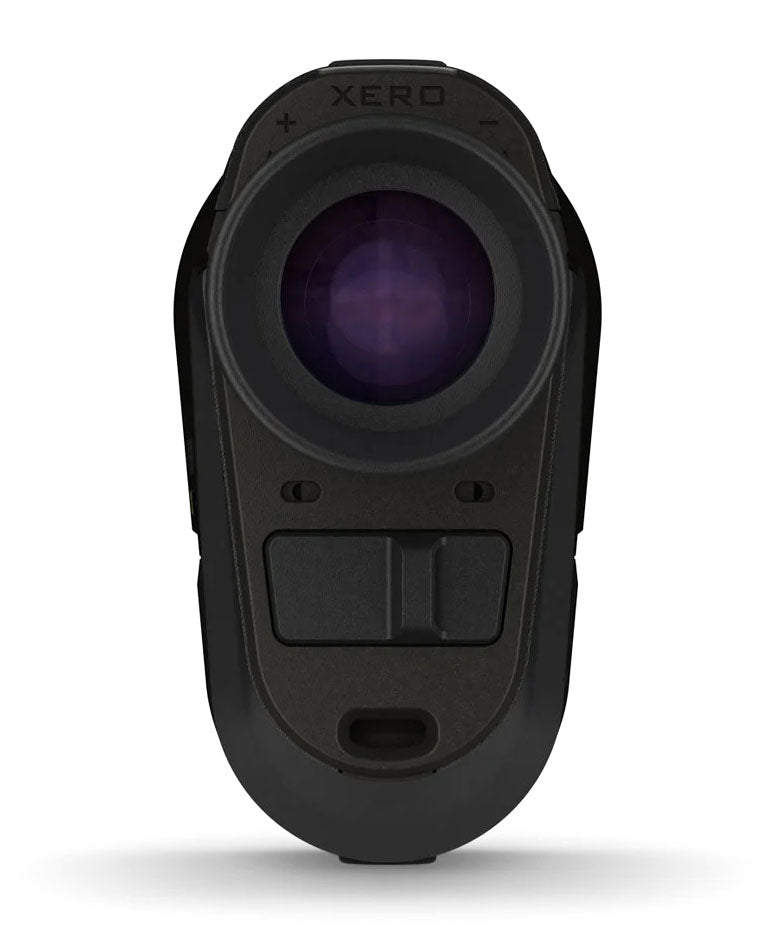

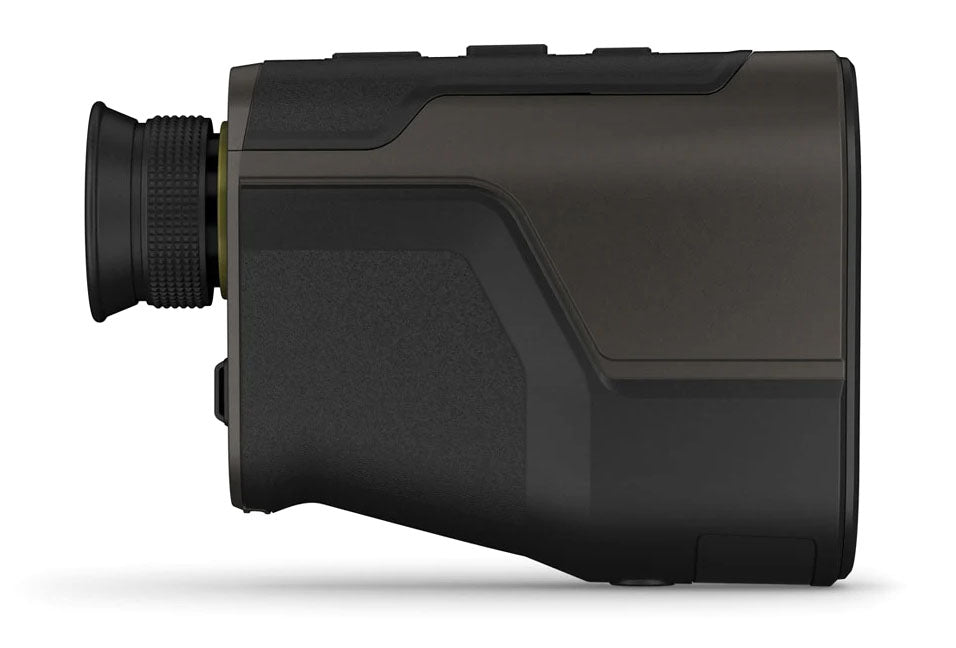

A revolutionary rangefinder above the rest. See your target through premium glass with a high-resolution graphic overlay that displays distance, mapping, navigation and more for an immersive visual experience.
- Use the 7x magnification to range trees out to 2,000 yards and animals out to 1,500 yards
- In optimal low-light conditions, reach all the way out to 7,600 yards to retro reflective objects
- Get pinpoint accuracy and precision with proprietary precision lock technology
- Get a sharp view through a full colour, high-resolution graphic overlay that displays distance, location, mapping, ballistics, navigation and more
- Look through the device, and let the graphic display overlay guide you to waypoints you’ve dropped with onboard TopoActive mapping
- Keep your bearings with a 3-axis compass, and see elevation profiles of your route
- You can even see an overhead perspective of your location on the graphic display overlay
- Leverage advanced GPS technology and onboard sensors to drop a waypoint on objects you’ve ranged with the Laser Locate waypoint projection feature
- Project a waypoint beyond rangeable distances with the sensor locate features. If you lose sight of an object while travelling to it, visual recall on the graphic overlay will guide you back to it
- Access the onboard Applied Ballistics Ultralight solver with the AB Quantum app, and get the data you need to make the perfect shot
- Archers also get arrow ballistics, such as max arrow height, angle-compensated range and more
- Send waypoints or data to your compatible smartphone and then share it with your compatible Garmin device so you can close the distance without using the graphic overlay. Spot something but your partner can’t find it? This feature also lets you share waypoints with your partner’s compatible devices
- Dimensions: 125.41 mm x 89.66 mm x 50.59 mm (4.94 in. x 3.53 in. x 1.99 in.)
- Weight:
- No battery: 362.88 g (0.80 lb.)
- With battery: 385.1 g (0.849 lb.)
- Water rating: IPX7
- Display type: DLP augmented reality
- Display size: overlaid on visual scene
- Display resolution: 960 pixels x 540 pixels
- Battery type: (2) AAA lithium batteries (included)
- Battery life: 1,400 ranges (1 sec range, 10 sec display)
- Multicolour display
- Operating range: -20 °C to 60 °C (-4 °F to 140 °F)
- Memory/history: 32 GB internal less file system space
- Interface: USB-C
- Laser classification: class 1
- Connectivity: Bluetooth®
- Magnification7x
- Objective: 32 mm
- Field of view: 7 degrees
- Field of view (linear feet at 1,000 yards): 365 ft.
- Eye relief: 18 mm (0.71 in.)
- Exit pupil diameter: 4.6 mm
- Focus adjustment: +/- 4 diopters
- Precision: +/- .1 m
- Accuracy:
- +/- .25 m out to 1,000 m
- +/- 1.0 m beyond 1,000 m
- Distance to targets (full sun):
- Animals: 1,375 m (1,500 yd.)
- Trees: 1,800 m (2,000 yd.)
- Retro reflective: 5,000 m (5,500 yd.)
- Distance to targets (optimal conditions):
- Animals: 2,775 m (3,000 yd.)
- Trees: 3,600 m (4,000 yd.)
- Retro reflective: 7,000 m (7,500 yd.)
- Laser beam divergence: 0.5 x 0.5 mrad
- In the box:
- Xero® L60i laser rangefinder
- Carrying case
- (2) AAA lithium batteries
- Power/data cable
- Documentation
